61800 Series

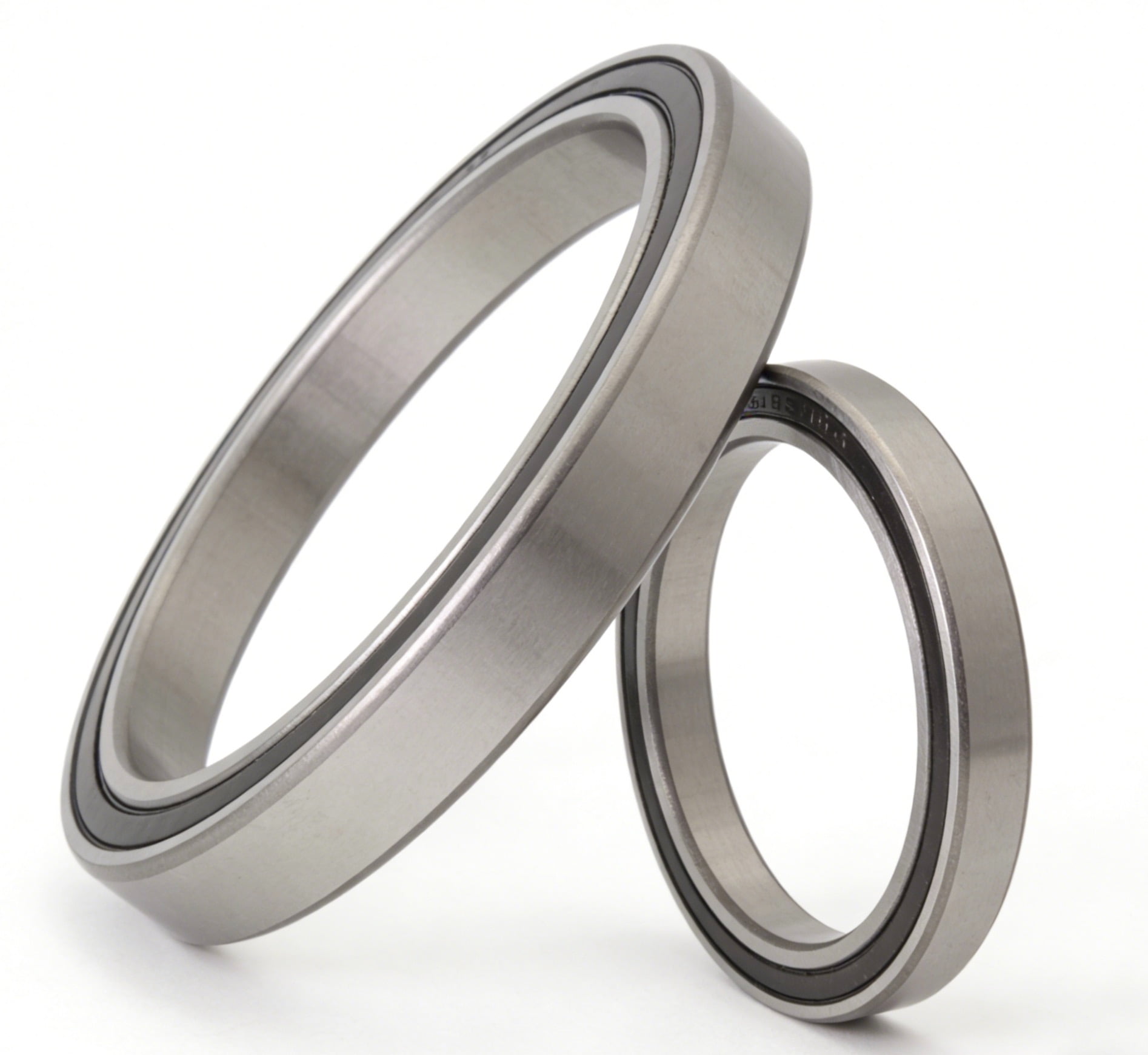

Thin-walled bearings are small, lightweight bearings with ultra-thin cross-sections. They are primarily available in seal types such as RS and ZZ. They are manufactured by manufacturers like Luoyang Preson. Their inner diameter to outer diameter ratio is ≤1.25, and they utilize a uniform cross-section design to maintain high precision and strong load-bearing capacity. They include thin-walled crossed roller bearings, deep groove ball bearings, and four-point contact ball bearings, achieving product precision levels of P4 and P2.
Product Specifications
| Model Number | d (mm) | D (mm) | B (mm) | C (kN) | Co (kN) | Ref. Speed (r/min) | Limit Speed (r/min) | Weight (KG) |
|---|---|---|---|---|---|---|---|---|
| 61800 | 10 | 19 | 5 | 1.38 | 0.585 | 80000 | 48000 | 0.0055 |
| 61801 | 12 | 21 | 5 | 1.43 | 0.67 | 70000 | 73000 | 0.0063 |
| 61802 | 15 | 24 | 5 | 1.56 | 0.8 | 60000 | 38000 | 0.0074 |
| 61803 | 17 | 26 | 5 | 1.68 | 0.93 | 56000 | 34000 | 0.0082 |
| 61804 | 20 | 32 | 7 | 4.03 | 2.32 | 45000 | 28000 | 0.018 |
| 61805 | 25 | 37 | 7 | 4.36 | 2.6 | 38000 | 24000 | 0.022 |
| 61806 | 30 | 42 | 7 | 4.49 | 2.9 | 32000 | 20000 | 0.027 |
| 61807 | 35 | 47 | 7 | 4.75 | 3.2 | 28000 | 18000 | 0.03 |
| 61808 | 40 | 52 | 7 | 4.94 | 3.45 | 26000 | 16000 | 0.034 |
| 61809 | 45 | 58 | 7 | 6.63 | 4.1 | 22000 | 14000 | 0.04 |
| 61810 | 50 | 65 | 7 | 6.76 | 6.8 | 20000 | 13000 | 0.052 |
| 61811 | 55 | 72 | 9 | 9.04 | 8.8 | 19000 | 12000 | 0.083 |
| 61812 | 60 | 78 | 10 | 11.9 | 11.4 | 17000 | 11000 | 0.11 |
| 61813 | 65 | 85 | 10 | 12.4 | 12.7 | 16000 | 10000 | 0.13 |
| 61814 | 70 | 90 | 10 | 12.4 | 13.2 | 15000 | 9000 | 0.14 |
| 61815 | 75 | 95 | 10 | 12.7 | 14.3 | 14000 | 85000 | 0.15 |
| 61816 | 80 | 100 | 10 | 13 | 15 | 13000 | 8000 | 0.15 |
| 61817 | 85 | 110 | 13 | 19.5 | 20.8 | 12000 | 7500 | 0.27 |
| 61818 | 90 | 115 | 13 | 19.5 | 22 | 11000 | 7000 | 0.28 |
| 61819 | 95 | 120 | 13 | 19.9 | 22.8 | 11000 | 6700 | 0.3 |
Product Advantages
Versatility
They can support both radial and axial loads, making them suitable for a wide range of applications.
Reliability
Their simple design and construction make them highly durable and resistant to wear, leading to a long service life.
Cost-effectiveness
Compared to other types of bearings, deep groove ball bearings are relatively inexpensive and offer a good cost-performance ratio.
Smooth operation
The balls in the bearing allow for smooth, low-friction rotational motion, reducing noise and vibration.
High-speed capability
Deep groove ball bearings can operate at high speeds, making them suitable for high-speed applications.
Wide operating temperature range
These bearings are designed to withstand a range of temperatures and can be used in extreme temperature environments.
Easy to maintain
Deep groove ball bearings are low maintenance, requiring only occasional lubrication to maintain their performance.
Industrial Applications
Trusted solutions for diverse industrial scenarios.
Textile Equipment
Transmission Equipment
Agricultural Machinery
Fitness Equipment
Metallurgical Machinery
Mining Machinery
Packaging Equipment
