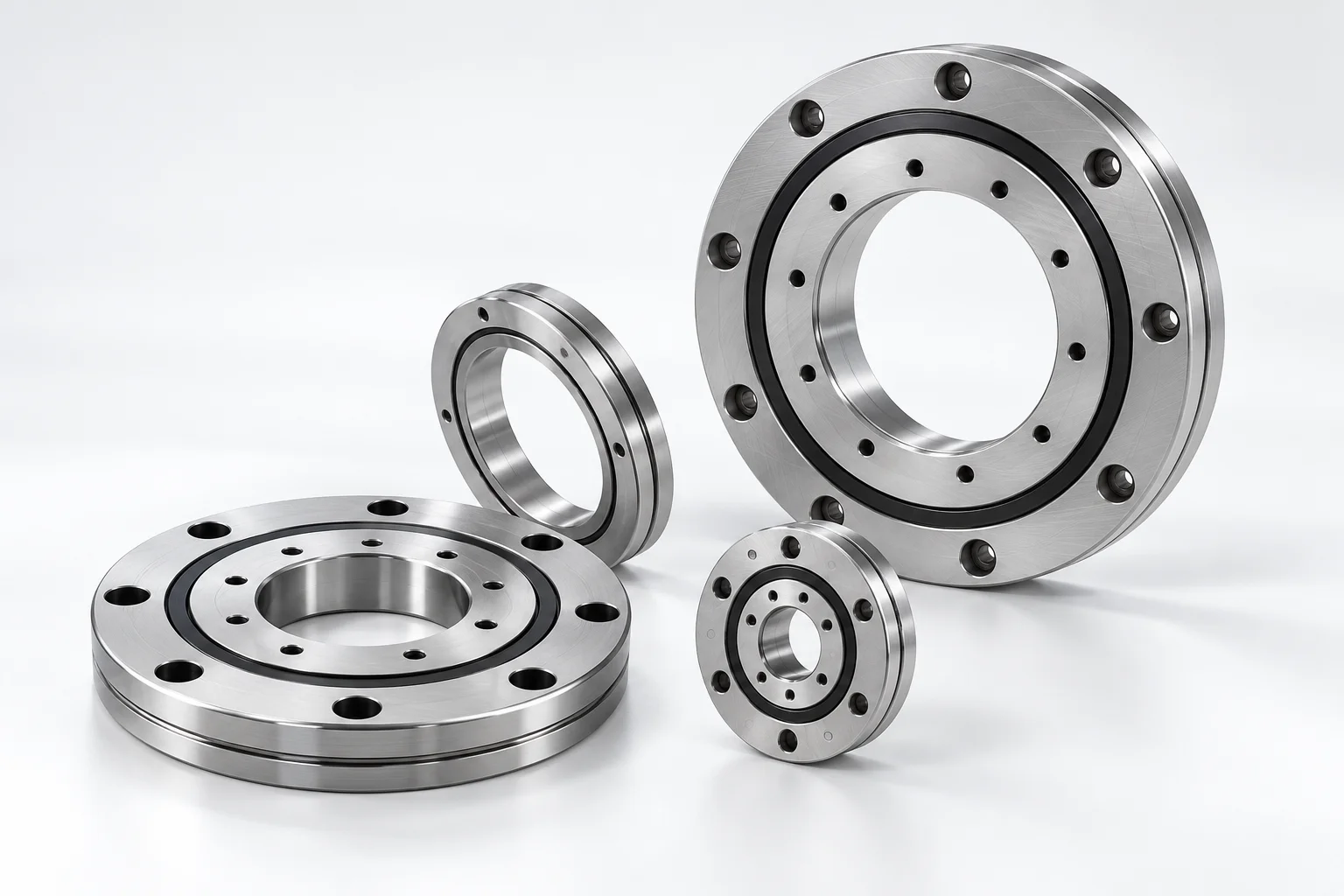

Crossed Roller Bearings
High rigidity, compact dimensions and precise rotation for applications exposed to radial, axial and moment loads. Available in RB, RE, RA, RU, CRBH and CRBT series, with configurable precision, clearance, preload, seals and lubrication.
Choose the Right Series

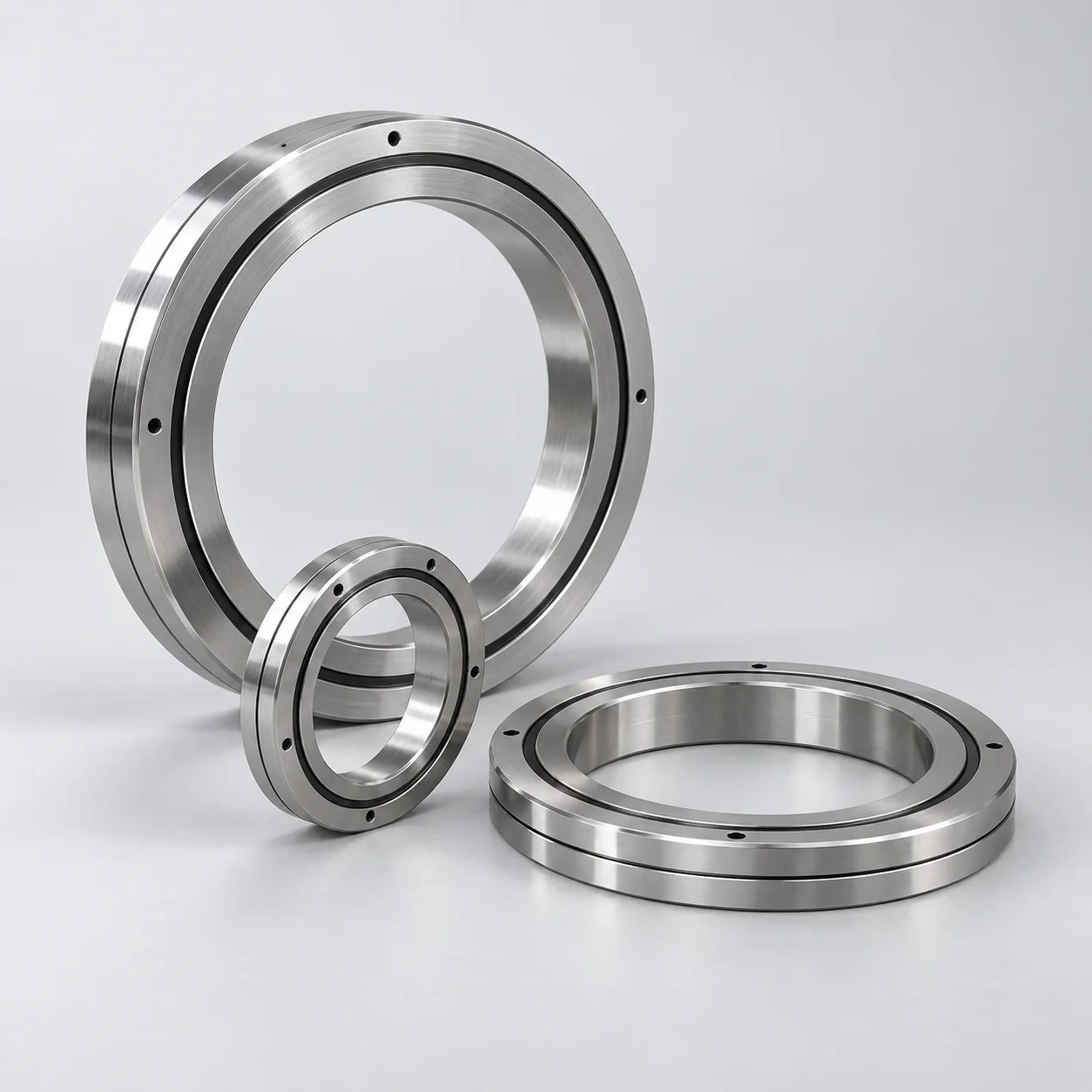

RB -- Inner Ring Rotation
High rigidity design with inner ring rotation capability, ideal for applications requiring precise angular positioning and high load capacity in compact spaces.

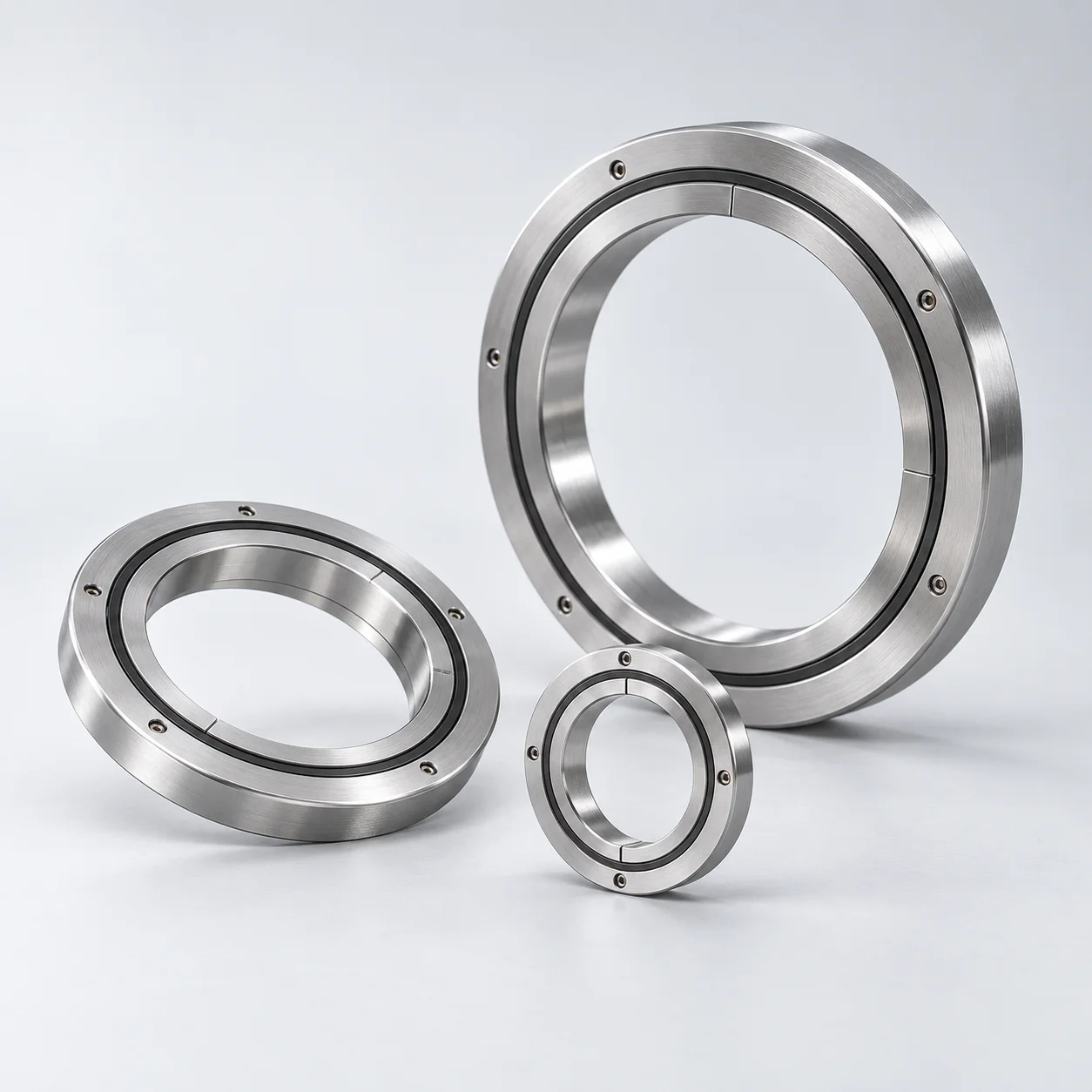

RE -- Outer Ring Rotation
Outer ring rotation design provides excellent moment rigidity and simplified mounting, perfect for applications where the housing rotates around a fixed shaft.

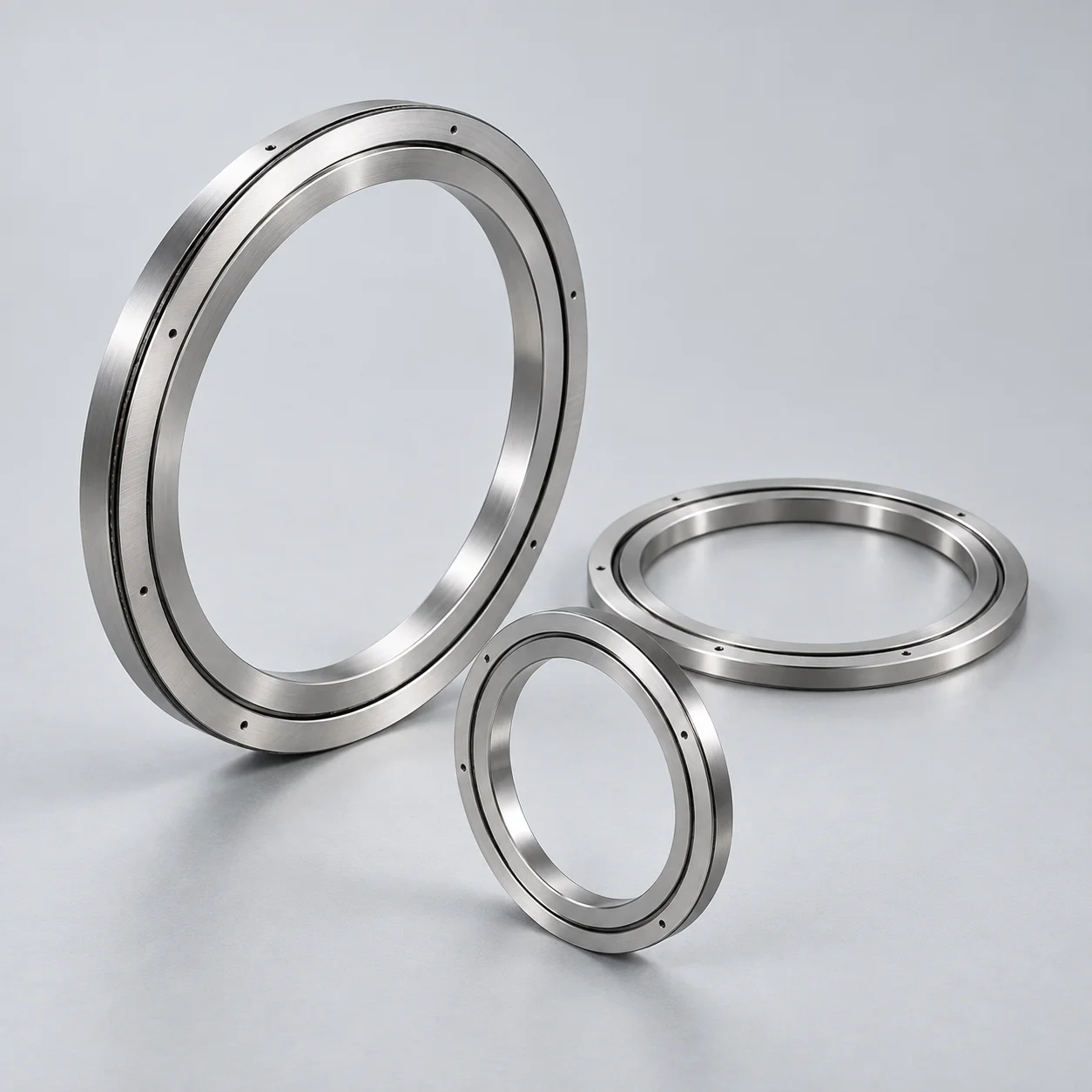

RA -- Thin Section
Ultra-compact thin section design maximizes space efficiency while maintaining high load capacity, enabling lightweight and miniaturized precision equipment.

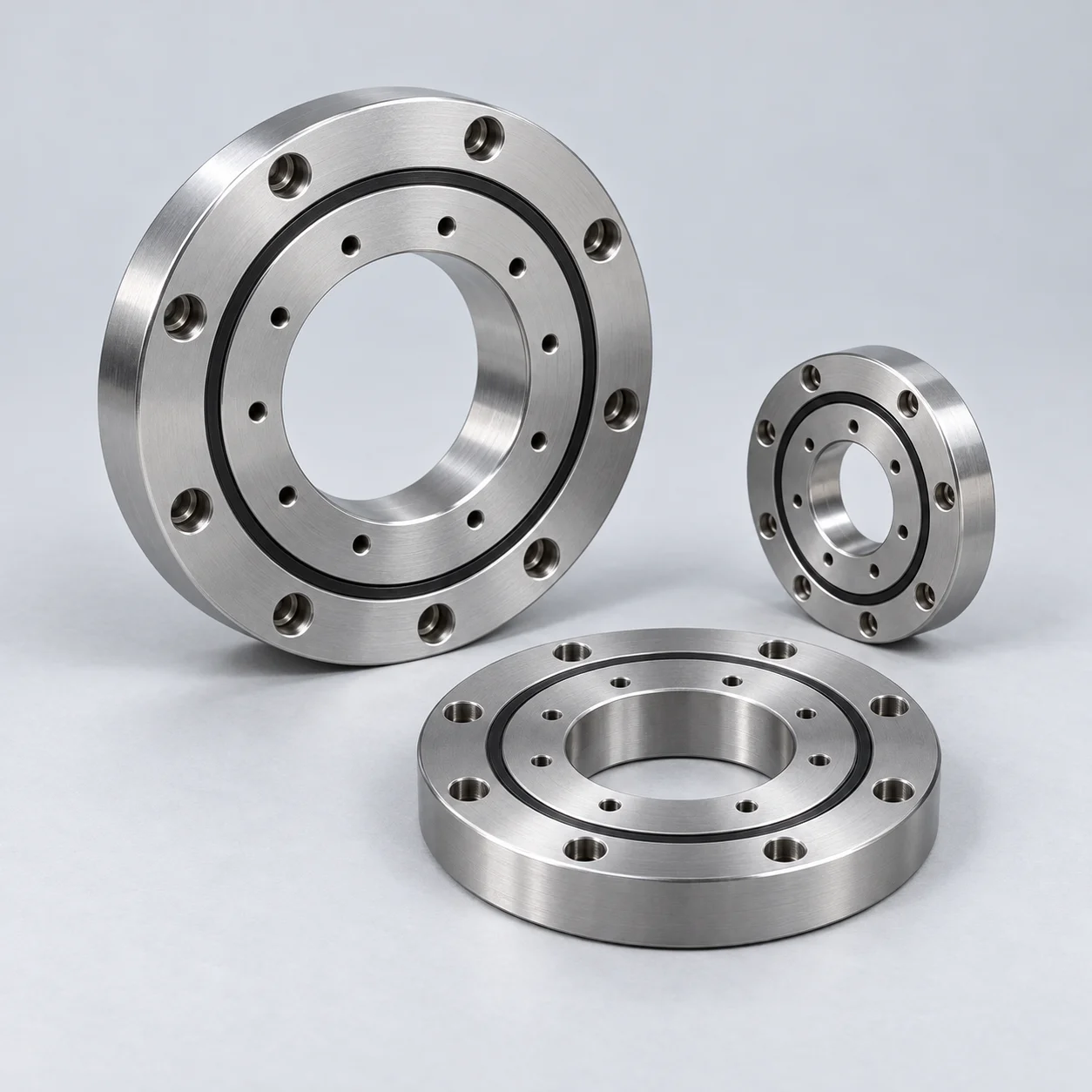

RU -- Integrated Mounting
Integrated mounting holes simplify installation and reduce assembly time, offering superior rigidity and positioning accuracy for high-performance motion systems.

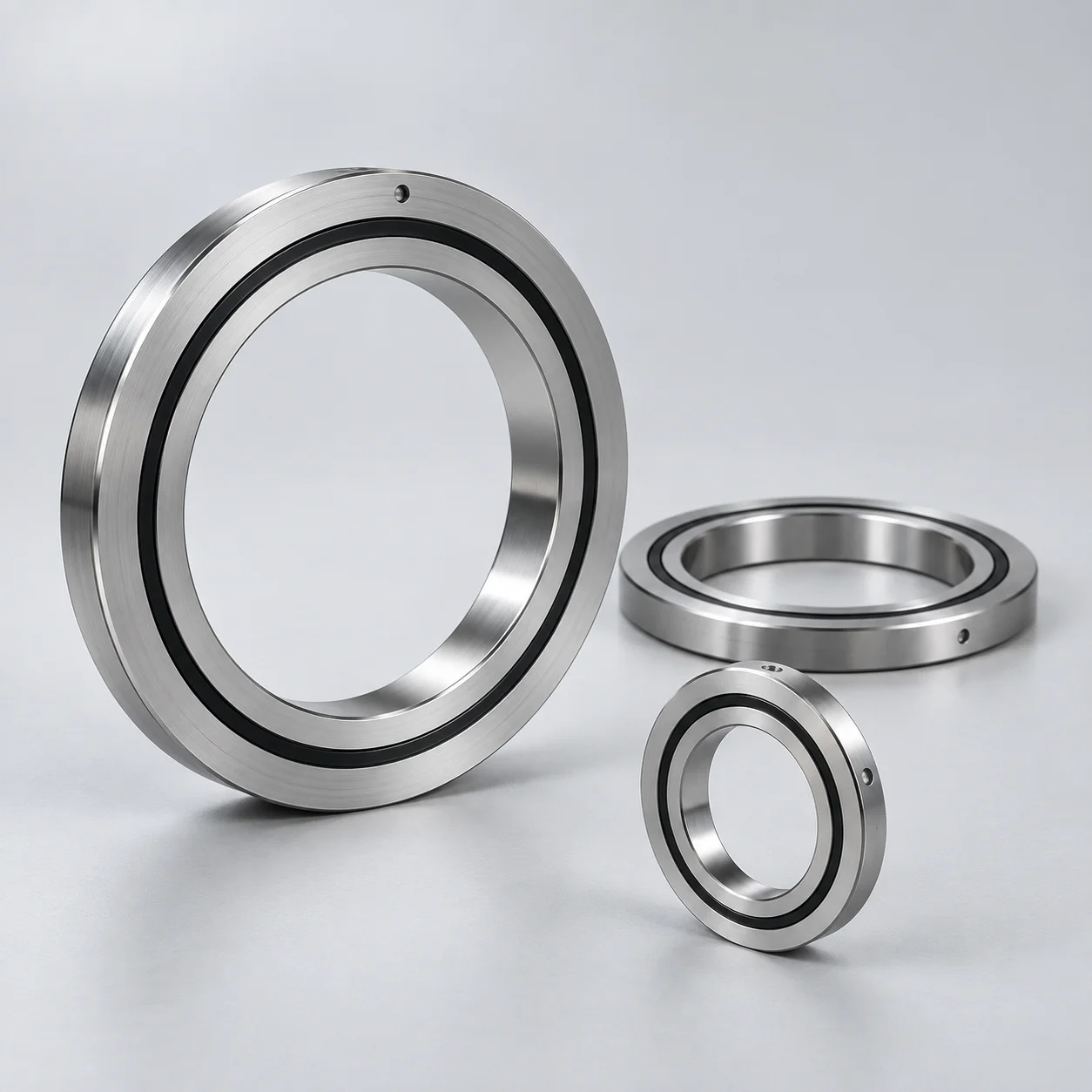

CRBH -- Integrated Thin Type
Combines thin section profile with integrated mounting features, delivering exceptional space savings and easy installation for demanding precision applications.

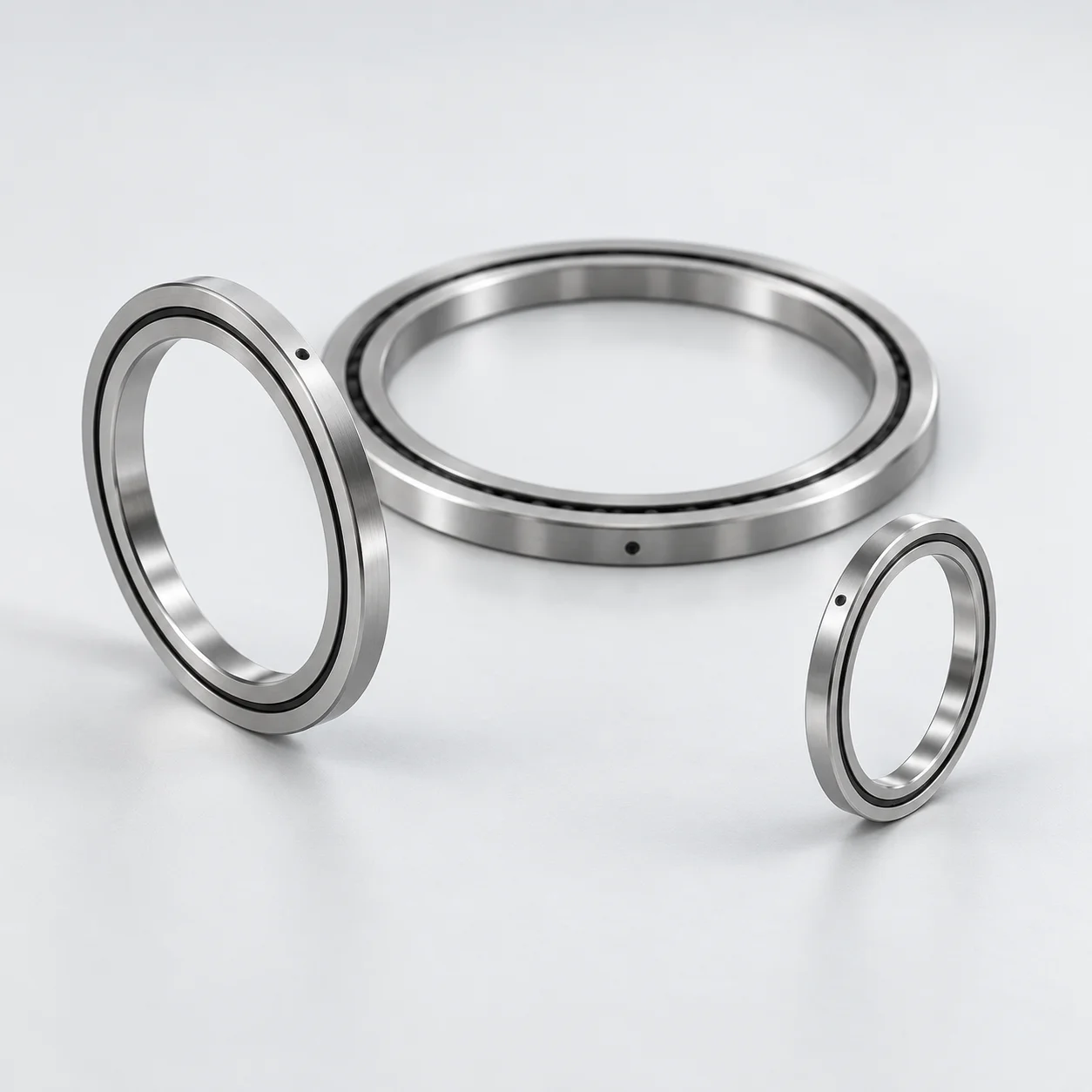

CRBT -- Ultra-Thin Type
Extremely thin cross-section design achieves maximum miniaturization without sacrificing performance, ideal for space-critical precision equipment and robotics.
RB Crossed Roller Bearing Dimensions
Browse popular models below. Select another series above to update the table.
| Bearing Model | d (mm) | D (mm) | B (mm) | Cr (kN) | C0r (kN) | Mass (kg) |
|---|
No matching model found.
Send us the complete designation, dimensions or drawing for model matching.
Which Series Fits Your Application?
Start with the rotating ring and mounting structure, then confirm space, rigidity and accuracy requirements.
Click your design requirement:
| Your Design Requirement | Recommended Series |
|---|---|
| Inner ring rotates | RB |
| Outer ring rotates | RE |
| Very limited radial space | RA or CRBT |
| Direct bolt mounting, no separate housing | RU |
| Integrated, non-separable structure | CRBH |
| Compact robot joint or lightweight mechanism | RA, CRBT or RU |
| Rotary table requiring high rigidity | RB, RE or RU |
Five Details We Need for Selection
- 1 Required bore, outside diameter and width
- 2 Which ring rotates and at what speed
- 3 Radial, axial and moment loads
- 4 Required running accuracy and rotational torque
- 5 Mounting, sealing, lubrication and operating environment
A drawing, existing bearing model or equipment photo can help us identify the correct configuration faster.
Send Your Application DetailsFrequently Asked Questions
Get the right bearing, not just a similar model. Send us the bearing designation, drawing or operating conditions.
RB bearings normally use an integrated inner ring and split outer ring and are commonly selected for inner-ring rotation. RE bearings use the opposite ring structure and are generally selected for outer-ring rotation. Final selection should also consider fit, mounting and load direction.
Choose RU when direct bolt mounting and simplified surrounding structure are important. Its integrated rings and mounting holes allow both rings to be fixed directly, reducing the need for a separate flange or housing.
Preload depends on the required rigidity, rotational torque, speed, temperature and mounting accuracy. Excessive preload can increase friction and temperature, so it should be confirmed from the complete operating conditions.
We can evaluate dimensional and functional equivalence from the complete model number, drawing and application data. Brand designations should not be treated as interchangeable until dimensions, tolerances, preload, sealing and accuracy have been verified.
Yes. Custom dimensions, mounting holes, clearance, preload, sealing and lubrication can be evaluated from a drawing. Feasibility, MOQ and delivery time depend on the specific design requirements.
Provide the model or drawing, quantity, precision requirement, rotating ring, load, speed, operating temperature, lubrication, sealing and delivery destination. If some data is unavailable, tell us the equipment and application.
Request a Crossed Roller Bearing Quote
Send us the bearing designation, drawing or operating conditions. We will review dimensions, structure, accuracy and application requirements before quoting.
