Materials

For the housing ,you can choose grey cast iron;cast steel, ductile iron.contact us for more information.
Rolling bearing from bearing steel.

Package

1.Commercial packing: 1pc/plastic bag + color box + carton + wood pallets
2.As the customers’ requirement

WhatsApp Inquiry Email Inquiry

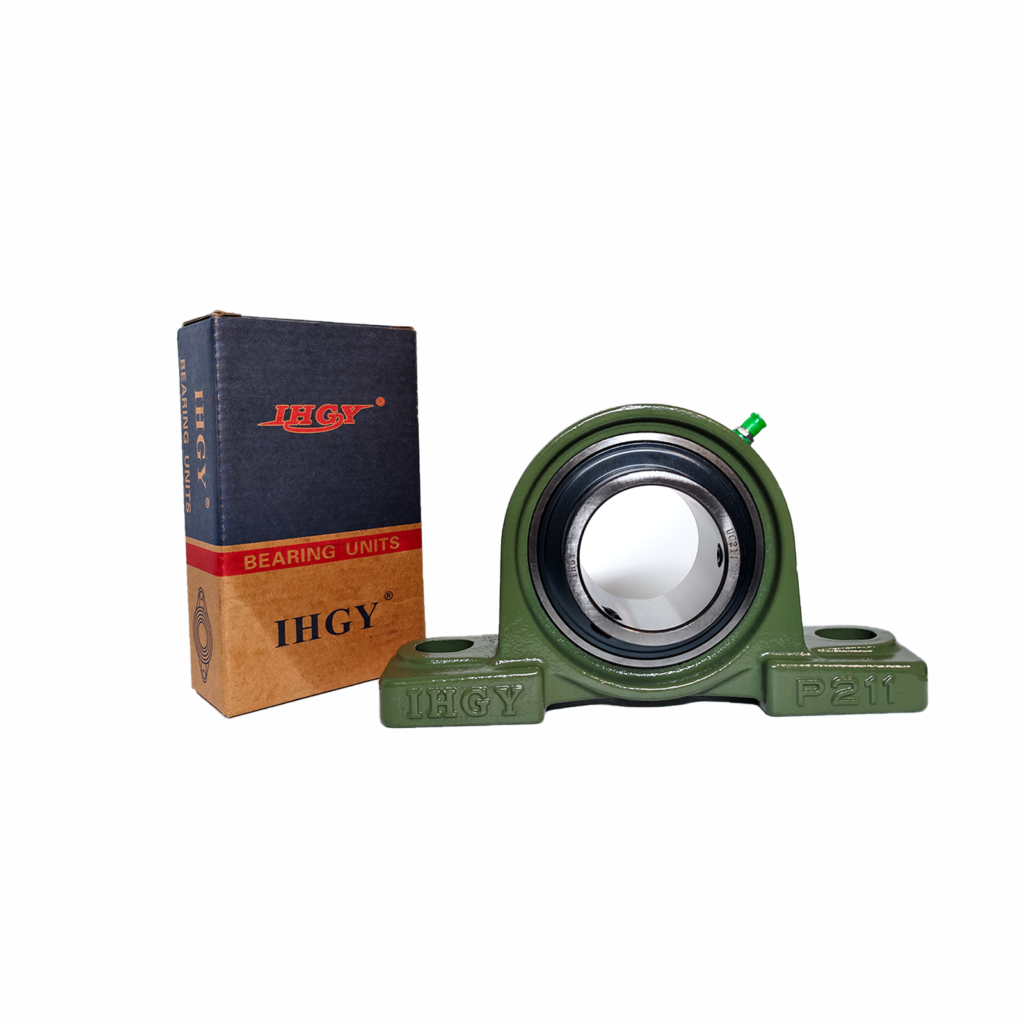

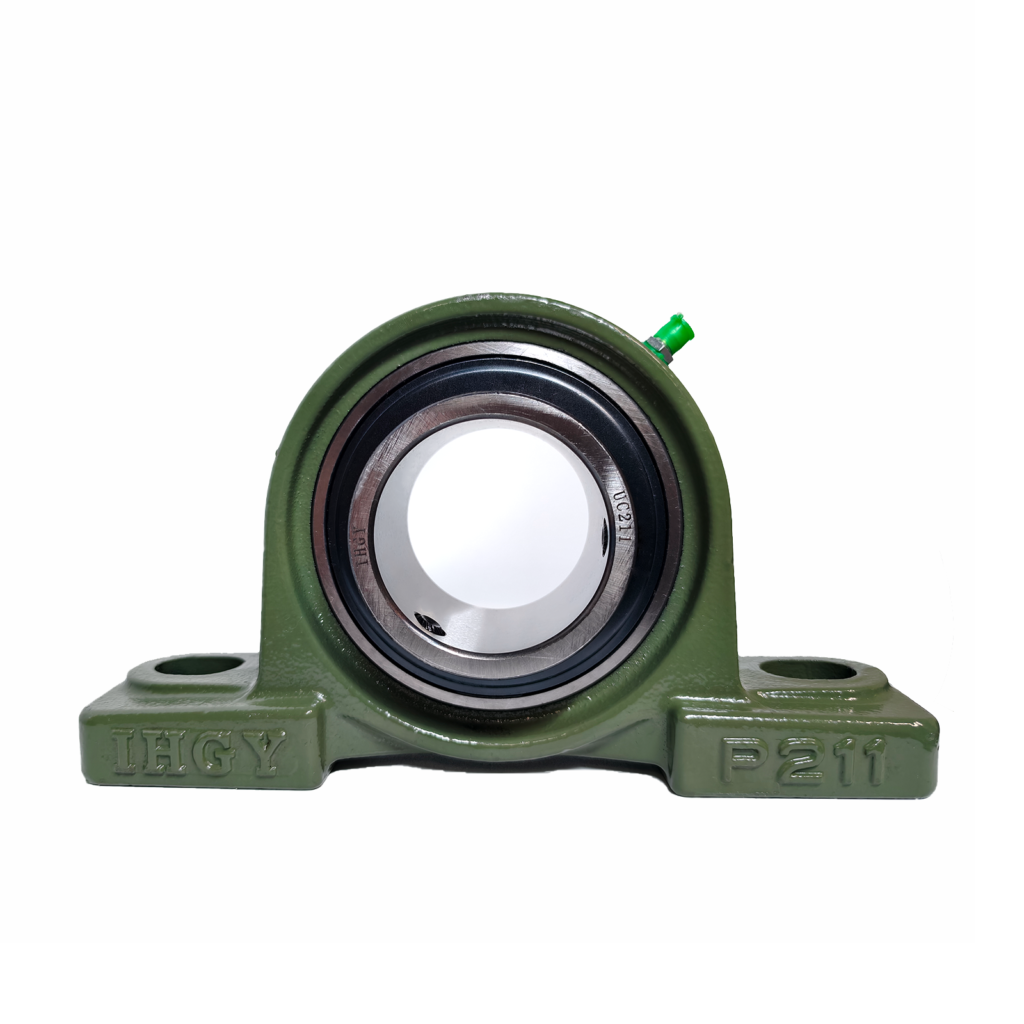

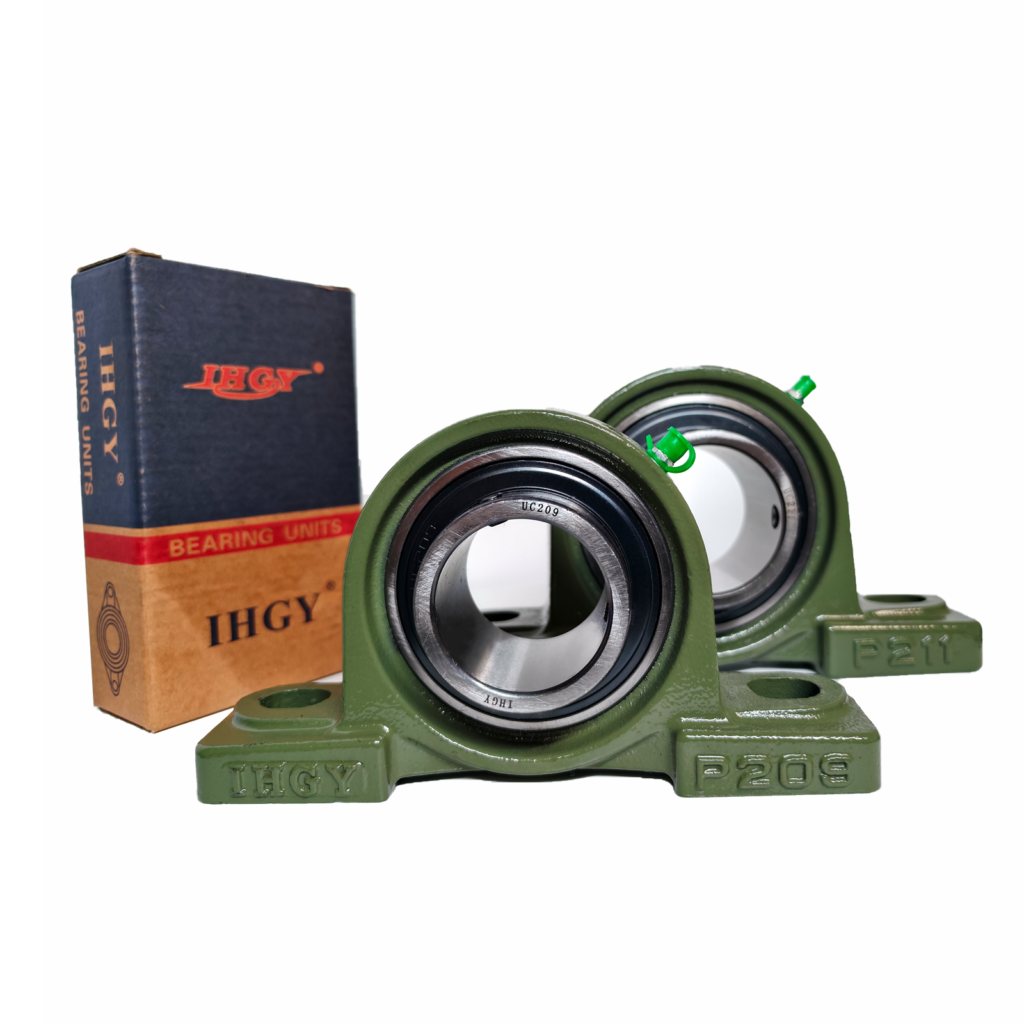

UCP218

Professional Bearing Solution

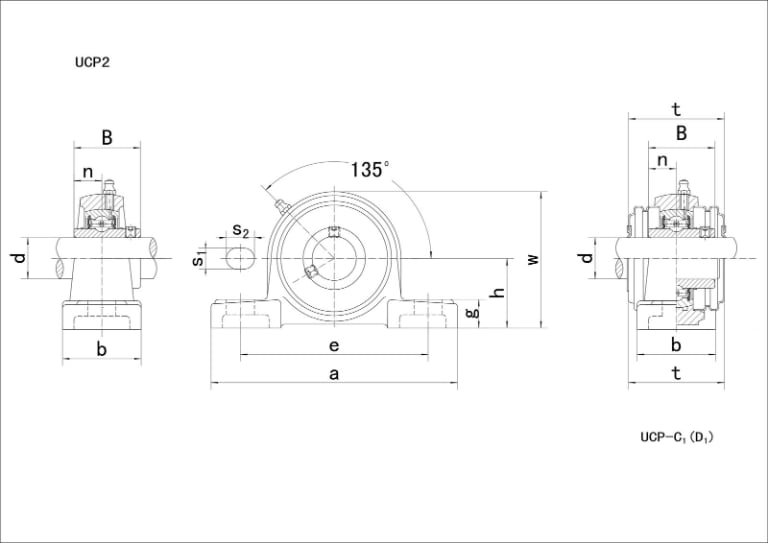

Product Parameters(mm/in)

Unit NO.	UCP218
d (Shaft Bore)	90 mm / 3.543 in.
h	101.6 mm / 4 in.
a	327 mm / 12.874 in.
e	262 mm / 10.315 in.
b	88 mm / 3.465 in.
s1	27 mm / 1.063 in.
s2	30 mm / 1.181 in.
g	33 mm / 1.299 in.
w	198 mm / 7.795 in.
t	123 mm / 4.843 in.
B	96 mm / 3.78 in.
n	39.7 mm / 1.563 in.
Bolt Size	M22
Bearing No.	UC218
Housing No.	P218
Weight	11.59 kg

Product Description

1.Generally P-Series pillow blocks are operational in industrial applications.

2.The most typical type ball bearing unit designed with reinforced rib in the center of the base for most favorable strength with least deformation.

3.The insert ball bearing unit combined the spherical outer surface of the bearing match the concave shaped in inside diameter of the housing which gives the unit unique self-aligning ability.

4.This one-piece housing with two foundation slots can be installed in any position and makes bearing replacement easily.

5.These pillow blocks are pre lubricated, which can be easy to install on immediate necessity.

6.Designed with grease nipple provision for re- lubrication.

7.lts special bonded seal design is appropriate for wet or dull environments.

8.Dimensions of base to bearing diameter center and mounting hole are interchangeable with competitive units.
