Professional Bearing Solution

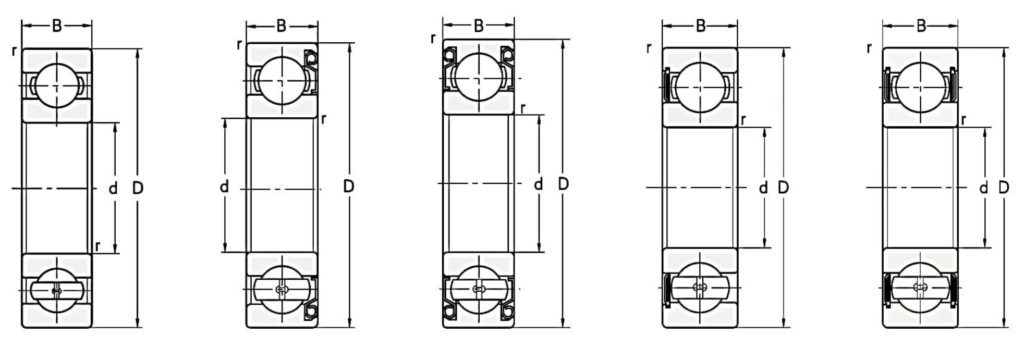

Product Parameters(mm/in)

Unit NO.	6214
d	70 mm
D	125 mm
B	24 mm
Dynamic load C	63.7 kN
Static load Co	45 kN
Reference speed	11000 r/min
Limit speed	7000 r/min
Weight	1.05 kg

Product Description

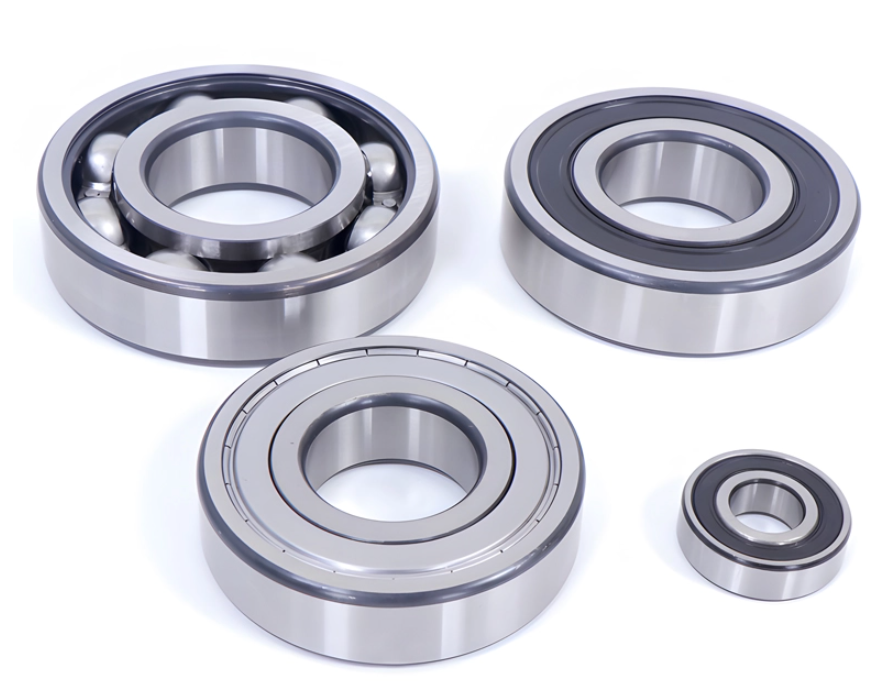

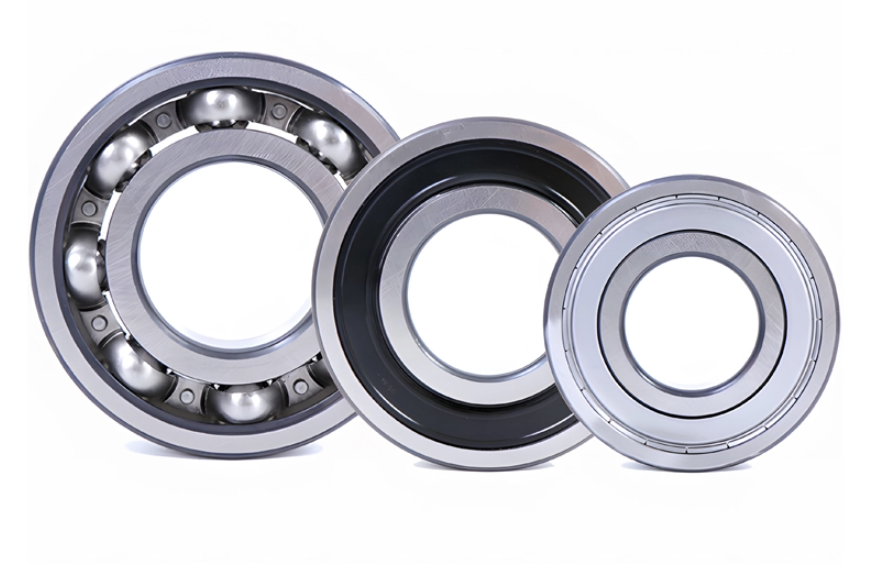

Deep Groove Ball Bearings consist of an outer ring, an inner ring, a set of steel balls, and a cage. Deep groove ball bearings are available in single-row and double-row configurations. Deep groove ball bearings are also classified into sealed and open configurations. Open configurations are unsealed, while sealed deep groove ball bearings are classified into dust-proof seals and oil-proof seals. Dust-proof seals are stamped from steel and simply prevent dust from entering the bearing raceways. Oil-proof configurations use contact seals, effectively preventing grease from escaping the bearing.

Competitive Edge

Key Features & Applications

Versatility: They can support both radial and axial loads, making them suitable for a wide range of applications.

Reliability: Their simple design and construction make them highly durable and resistant to wear, leading to a long service life.

Cost-effectiveness: Compared to other types of bearings, deep groove ball bearings are relatively inexpensive and offer a good cost-performance ratio.

Smooth operation: The balls in the bearing allow for smooth, low-friction rotational motion, reducing noise and vibration.

High-speed capability: Deep groove ball bearings can operate at high speeds, making them suitable for high-speed applications.

Wide operating temperature range: These bearings are designed to withstand a range of temperatures and can be used in extreme temperature environments.

Easy to maintain: Deep groove ball bearings are low maintenance, requiring only occasional lubrication to maintain their performance.
