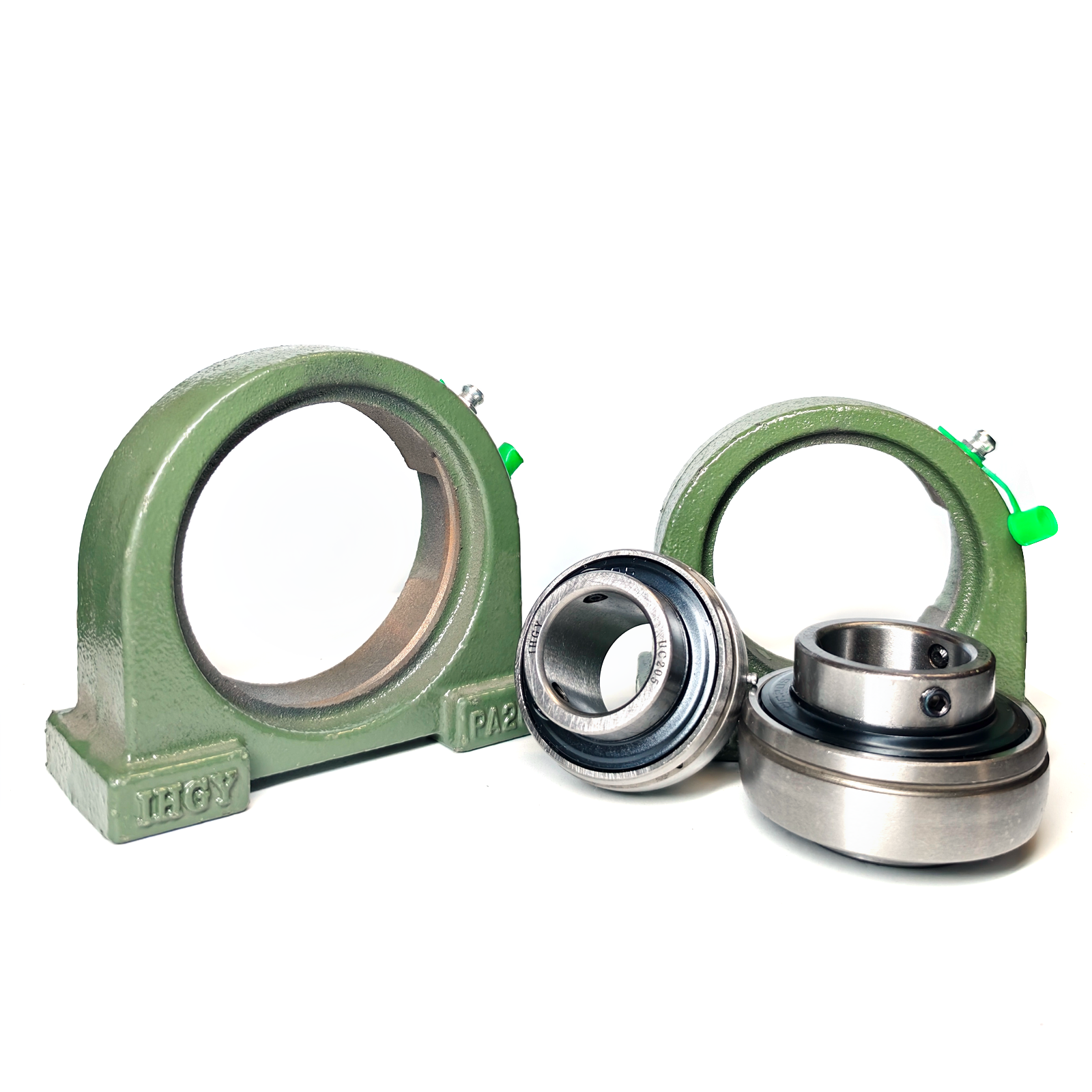

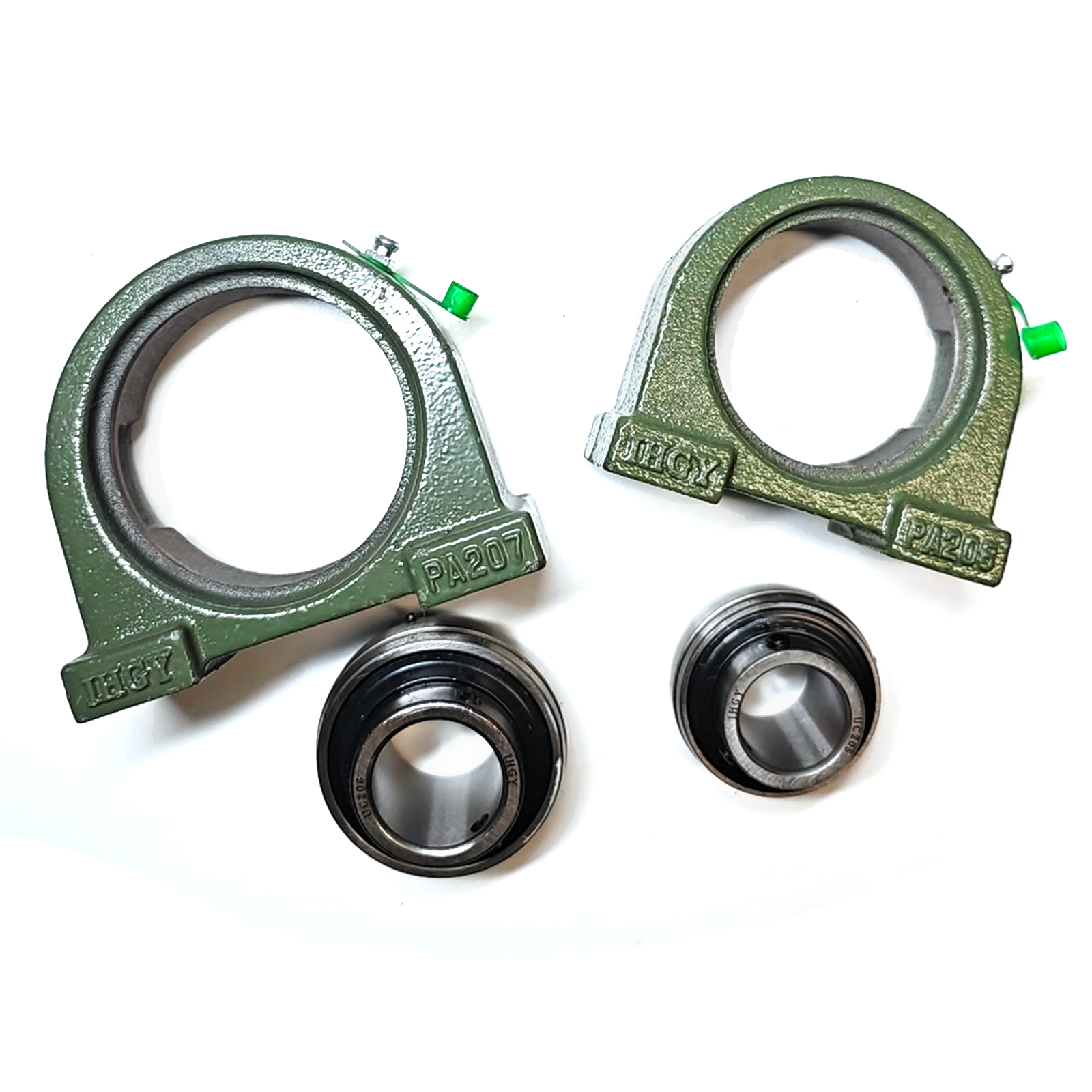

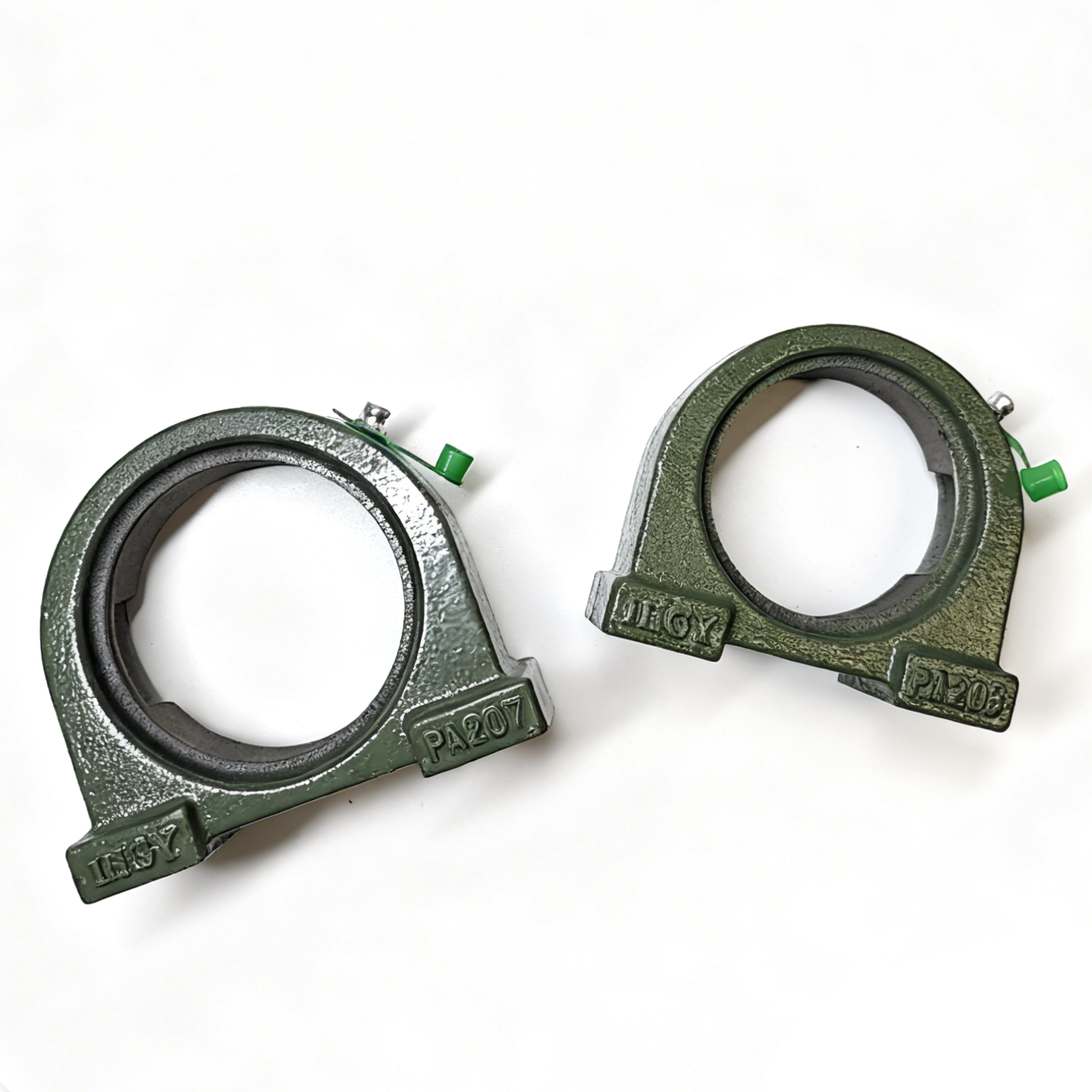

UCPA 200 Series Pillow Block Bearing

UCPA bearrng units designed for precision and durability in industrial applications. Features a compact housing design ideal for limited mounting spaces.

Material Specifications

Housing Options: Grey cast iron, Cast steel, Ductile iron.

Rolling Bearing: High-quality bearing steel.

* Contact us for specific material requirements.

Packaging Details

Commercial packing: 1pc/plastic bag + color box + carton + wood pallets
Customized packing available as per customer requirements

Technical Specifications

Comprehensive dimensional data for UCPA Series Bearing Units

Bearing No.	d (mm/in.)	h (mm/in.)	a (mm/in.)	e (mm/in.)	b (mm/in.)	s (mm/in.)	g (mm/in.)	I (mm/in.)	W (mm/in.)	b (mm/in.)	n (mm/in.)	Bolt Size	Housing No.	Unit No.	Weight (kg)
UCPA201	12	30.2	76	52	40	M10	11	15	62	31	12.7	M10	UC201	PA201	0.63
UCPA201-8	1/2	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC201-8	PA201	0.62
UCPA202	15	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC202	PA202	0.62
UCPA202-9	9/16	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC202-9	PA202	0.62
UCPA202-10	5/8	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC202-10	PA202	0.62
UCPA203	17	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC203	PA203	0.61
UCPA203-11	11/16	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC203-11	PA203	0.6
UCPA204	20	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC204	PA204	0.589
UCPA204-12	3/4	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC204-12	PA204	0.589
UCPA205	25	36.5	84	56	38	M10	12	15	72	34.1	14.3	M10	UC205	PA205	0.756
UCPA205-13	13/16	1-7/16	3-5/16	2-13/64	1-1/2	M10	15/32	19/32	2-53/64	1.3425	0.563	M10	UC205-13	PA205	0.793
UCPA205-14	7/8	1-7/16	3-5/16	2-13/64	1-1/2	M10	15/32	19/32	2-53/64	1.3425	0.563	M10	UC205-14	PA205	0.783
UCPA205-15	15/16	1-7/16	3-5/16	2-13/64	1-1/2	M10	15/32	19/32	2-53/64	1.3425	0.563	M10	UC205-15	PA205	0.763
UCPA205-16	1	1-7/16	3-5/16	2-13/64	1-1/2	M10	15/32	19/32	2-53/64	1.3425	0.563	M10	UC205-16	PA205	0.753
UCPA206	30	42.9	94	66	50	M14	12	18	84	38.1	15.9	M14	UC206	PA206	1.116
UCPA206-17	1-1/16	1-11/16	3-45/64	2-19/32	1-31/32	M14	15/32	45/64	3-5/16	1.5000	0.626	M14	UC206-17	PA206	1.126
UCPA206-18	1-1/8	1-11/16	3-45/64	2-19/32	1-31/32	M14	15/32	45/64	3-5/16	1.5000	0.626	M14	UC206-18	PA206	1.136
UCPA206-19	1-3/16	1-11/16	3-45/64	2-19/32	1-31/32	M14	15/32	45/64	3-5/16	1.5000	0.626	M14	UC206-19	PA206	1.116
UCPA206-20	1-1/4	1-11/16	3-45/64	2-19/32	1-31/32	M14	15/32	45/64	3-5/16	1.5000	0.626	M14	UC206-20	PA206	1.106
UCPA207	35	47.6	110	80	55	M14	13	20	95	42.9	17.5	M14	UC207	PA207	1.546
UCPA207-20	1-1/4	1-7/8	4-21/64	3-5/32	2-11/64	M14	33/64	25/32	3-47/64	1.6890	0.689	M14	UC207-20	PA207	1.611
UCPA207-21	1-5/16	1-7/8	4-21/64	3-5/32	2-11/64	M14	33/64	25/32	3-47/64	1.6890	0.689	M14	UC207-21	PA207	1.581
UCPA207-22	1-3/8	1-7/8	4-21/64	3-5/32	2-11/64	M14	33/64	25/32	3-47/64	1.6890	0.689	M14	UC207-22	PA207	1.551
UCPA207-23	1-7/16	1-7/8	4-21/64	3-5/32	2-11/64	M14	33/64	25/32	3-47/64	1.6890	0.689	M14	UC207-23	PA207	1.521
UCPA208	40	49.2	116	84	58	M14	13	20	100	49.2	19	M14	UC208	PA208	1.798
UCPA208-24	1-1/2	1-15/16	4-9/16	3-5/16	2-9/32	M14	33/64	25/32	3-15/16	1.9370	0.748	M14	UC208-24	PA208	1.838
UCPA208-25	1-9/16	1-15/16	4-9/16	3-5/16	2-9/32	M14	33/64	25/32	3-15/16	1.9370	0.748	M14	UC208-25	PA208	1.808
UCPA209	45	54.2	120	90	60	M14	13	25	108	49.2	19	M14	UC209	PA209	2.053
UCPA209-26	1-5/8	2-9/64	4-23/32	3-35/64	2-23/64	M14	33/64	63/64	4-1/4	1.9370	0.748	M14	UC209-26	PA209	2.153
UCPA209-27	1-11/16	2-9/64	4-23/32	3-35/64	2-23/64	M14	33/64	63/64	4-1/4	1.9370	0.748	M14	UC209-27	PA209	2.113
UCPA209-28	1-3/4	2-9/64	4-23/32	3-35/64	2-23/64	M14	33/64	63/64	4-1/4	1.9370	0.748	M14	UC209-28	PA209	2.073
UCPA210	50	57.2	130	94	64	M16	14	25	116	51.6	19	M16	UC210	PA210	2.556
UCPA210-29	1-13/16	2-1/4	5-1/8	3-45/64	2-33/64	M16	35/64	63/64	4-9/16	2.0315	0.748	M16	UC210-29	PA210	2.676
UCPA210-30	1-7/8	2-1/4	5-1/8	3-45/64	2-33/64	M16	35/64	63/64	4-9/16	2.0315	0.748	M16	UC210-30	PA210	2.626
UCPA210-31	1-15/16	2-1/4	5-1/8	3-45/64	2-33/64	M16	35/64	63/64	4-9/16	2.0315	0.748	M16	UC210-31	PA210	2.576
UCPA210-32	2	2-1/4	5-1/8	3-45/64	2-33/64	M16	35/64	63/64	4-9/16	2.0315	0.748	M16	UC210-32	PA210	2.536
UCPA211	55	63.5	140	104	66	M16	14	25	125	55.6	22.2	M16	UC211	PA211	3.138
UCPA211-32	2	2-1/2	5-33/64	4-3/32	2-19/32	M16	35/64	63/64	4-59/64	2.1890	0.874	M16	UC211-32	PA211	3.288
UCPA211-33	2-1/16	2-1/2	5-33/64	4-3/32	2-19/32	M16	35/64	63/64	4-59/64	2.1890	0.874	M16	UC211-33	PA211	3.228
UCPA211-34	2-1/8	2-1/2	5-33/64	4-3/32	2-19/32	M16	35/64	63/64	4-59/64	2.1890	0.874	M16	UC211-34	PA211	3.188
UCPA211-35	2-3/16	2-1/2	5-33/64	4-3/32	2-19/32	M16	35/64	63/64	4-59/64	2.1890	0.874	M16	UC211-35	PA211	3.118
UCPA212	60	69.9	150	114	68	M16	15	25	138	65.1	25.4	M16	UC212	PA212	4.12
UCPA212-36	2-1/4	2-3/4	5-29/32	4-31/64	2-43/64	M16	19/32	63/64	5-7/16	2.5630	1.000	M16	UC212-36	PA212	4.25
UCPA212-37	2-5/16	2-3/4	5-29/32	4-31/64	2-43/64	M16	19/32	63/64	5-7/16	2.5630	1.000	M16	UC212-37	PA212	4.17
UCPA212-38	2-3/8	2-3/4	5-29/32	4-31/64	2-43/64	M16	19/32	63/64	5-7/16	2.5630	1.000	M16	UC212-38	PA212	4.1
UCPA212-39	2-7/16	2-3/4	5-29/32	4-31/64	2-43/64	M16	19/32	63/64	5-7/16	2.5630	1.000	M16	UC212-39	PA212	4.03
UCPA213	65	76.2	160	124	70	M16	15	25	150	65.1	25.4	M16	UC213	PA213	4.915
UCPA213-40	2-1/2	3	6-19/64	4-7/8	2-3/4	M16	19/32	63/64	5-29/32	2.5630	1.000	M16	UC213-40	PA213	5.005
UCPA213-41	2-9/16	3	6-19/64	4-7/8	2-3/4	M16	19/32	63/64	5-29/32	2.5630	1.000	M16	UC213-41	PA213	4.915

Key Features & Applications

Suitable for limited space applications and mounting bolts are accessed from the bottom of the unit.

The insert ball bearing unit combined the spherical outer surface of the bearing match the concave shaped in inside diameter of the housing which gives the unit unique self-aligning ability.

This one-piece housing with two tapped holes from bottom can be installed in any position and makes bearing replacement easily.

These pillow blocks are pre lubricated, which can be easy to install on immediate requirement.

Designed with grease nipple provision for re-lubrication.

Its special bonded seal design is appropriate for wet or dull environments.

Dimensions of base to bearing diameter center and mounting tapped holes are interchangeable with competitive units.
