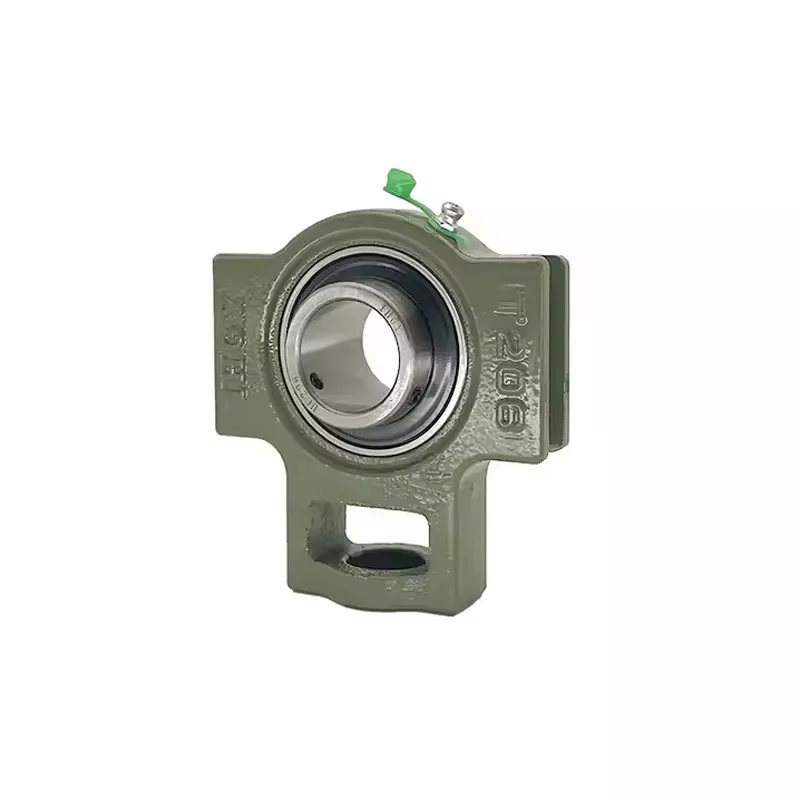

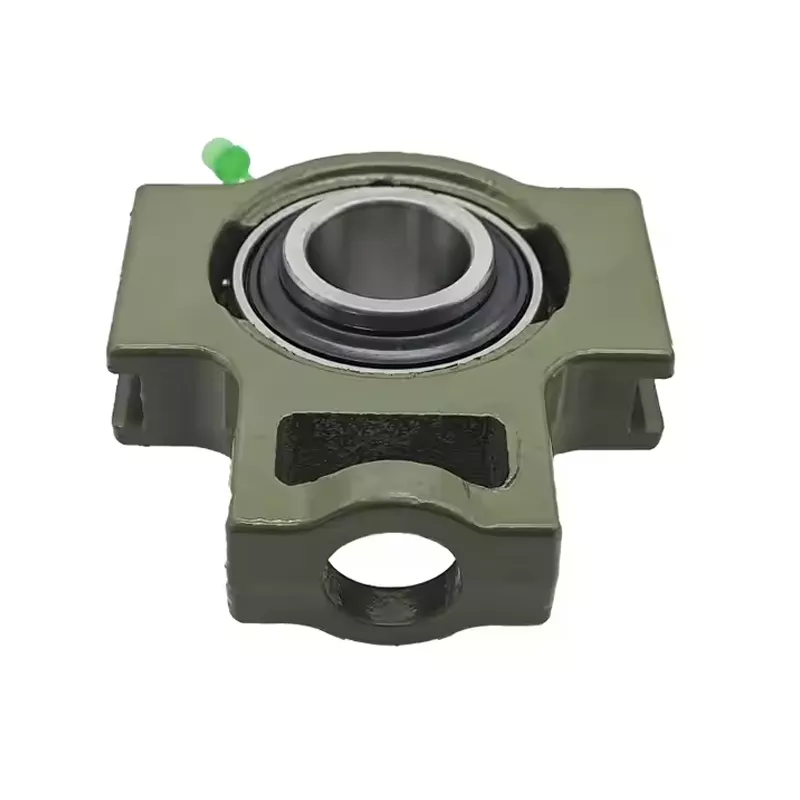

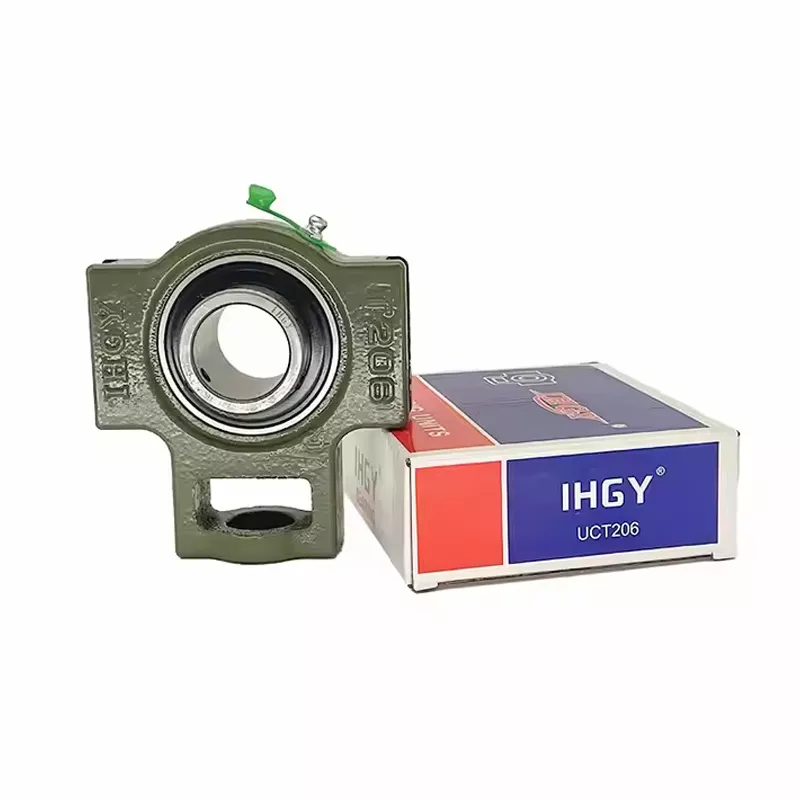

UCT series

1.T-series take-up units are suitable and can be used for belt tightening and shaft adjustment devices, like conveyor applications.

2.It provides effectual supports for adjustable shafts and conveyer take-up pulleys.

3.Take -up unit housing contains the ball bearing slide groove for unit and the housing.

4.These assembled units come with ready mounting position.

5.Bolt-hole distance and shaft center location are interchangeable with competitive units.

6.The insert ball bearing unit combined the spherical outer surface of the bearing match the concave shaped in inside

7.Diameter of the housing which gives the unit unique self-aligning ability.

8.These take-up units are pre lubricated, which can be easy to install on immediate necessity.

9.Designed with grease nipple provision for re- lubrication

10.lts special bonded seal design is appropriate for wet or dull environments. Special designed housing to replace the bearing easily.
